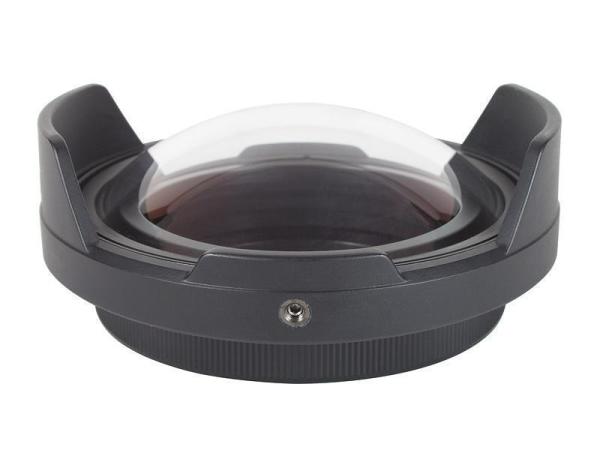

INON Dome Lens Unit II for UWL-S100 ZM80
Der Dome Port Unit II ist für das INON Unterwasser Weitwinkel UWL-S100 ZM80
Lieferumfang:
INON Dome Port II für UWL-S100 ZM80
*This product cannot be used by itself and must be used with compatible INON wide conversion lens.
*As same as using UWL-S100 ZM80 itself, set to zoom position 80mm (35mm film equivalent) until no vignetting is observed. Do not zoom beyond necessity as it will sacrifice view angle not to appreciate optimal performance of the lens.
*Generally, set Macro Mode to [ON]. However, for some cameras, depending on the particular focus range and aperture capabilities, some subjects at farther distances may not be in focus. In such cases, set Macro Mode to [OFF].
Product Specification (*1)
| Model |
Dome Lens Unit II for UWL-S100 ZM80 |
with UWL-S100 ZM80 |
| Outer diameter / Length (*2) |
Ф97.8mm / 39.4mm
(3.9in / 1.6in) |
Ф97.8mm / 81.5mm
(3.9in / 3.2in) |
| Weight (air / underwater) (*2) |
148g/ ―
(5.2oz / ―) |
― / approx.176g
( ― / approx.6.2oz) |
| Maximum incident view angle |
― |
149.8° |
| Body Material / Finishing |
Corrosion resistant aluminum alloy/
Rigid black alumite, Polycarbonate, POM etc. |
― |
| Glass material / Finishing |
Optical plasstic / Inner anti-reflection multi-coating, 防汚コート
outer surface hard coating |
― |
| Depth rating |
― |
60m |
●Actual shooting distance (from lens surface) and camera's focus setting
Shooting distance
[from top of the Dome](*3) |
Focus position(*4) |
| ∞ |
2693.7 cm |
| 320.8 cm |
2000 cm |
| 44.4 cm |
1000 cm |
| 22 cm |
800 cm |
| 0 cm |
280.5 cm |
