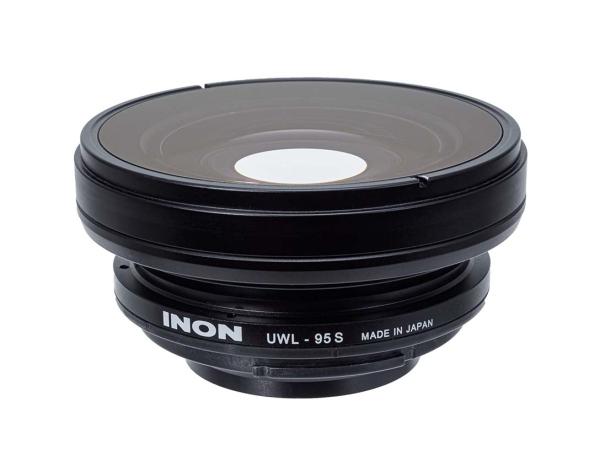

INON UWL-95S 67mm Wide Conversion Lens
Weitwinkel Konverter für 24mm Brennweite (Kompaktkameras) und 67mm Portgewinde
1. Maximum view angle 95° underwater/159° in air.
2. Optional
Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141°.
3. Optimally designed optics effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image.
4. 1.0 inch type sensor with bright master lens camera compatibility.
5. Minimum focusing distance
0 cm both on land and underwater.
Specifications
| |
UWL-95S M52 Wide Conversion Lens |
UWL-95S M67 Wide Conversion Lens |
| Outer diameter |
φ90 mm/3.5 in |
| Length |
48.3 mm/1.9 in |
| Weight |
approx.392 g(13.8 oz)[air]
approx. 611 g(21.6 oz)[underwater] |
approx.397 g(14.0 oz)[air]
approx. 618 g(21.8 oz)[underwater] |
| Mount |
INON M52 Mount |

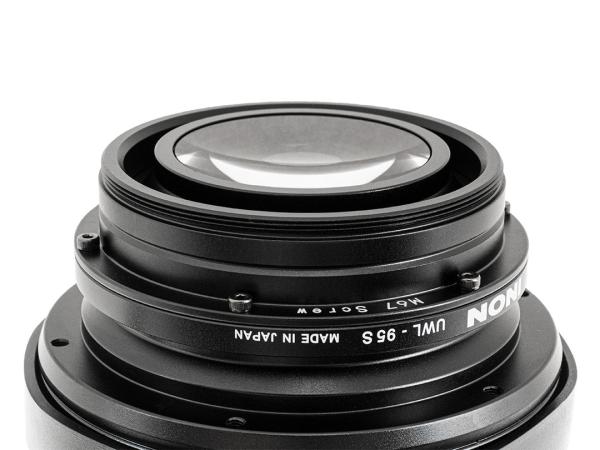

INON M67 Mount |
| Depth rating |
60 m/196.9 ft |
| Body material/finishing |
Corrosion-resistant aluminum alloy/rigid black almite, POM etc. |
| Glass/coating |
Optical glass/both side anti-reflection coating |
| Construction/magnification |
3 groups 4 elements/0.63 (afocal system) |
| Max. view angle |
Underwater: 95.1° /air: 159.0° |
