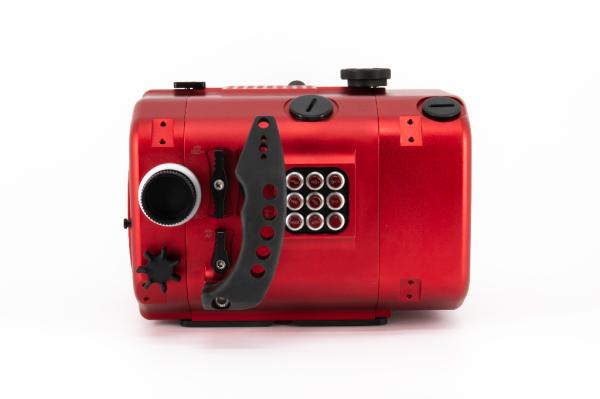

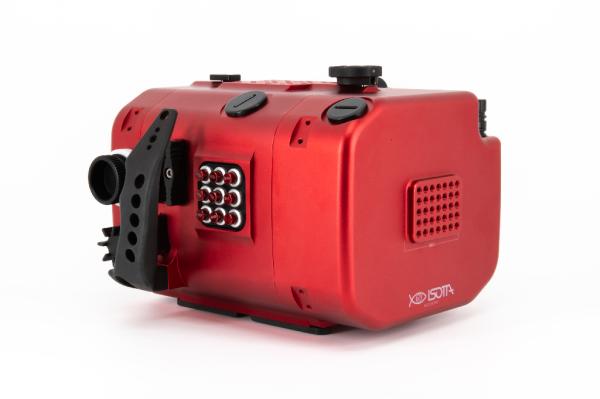

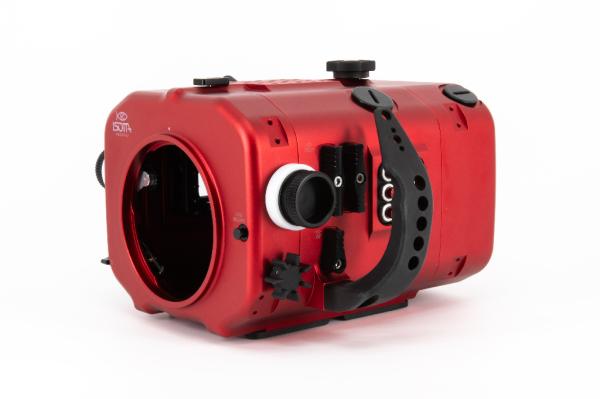

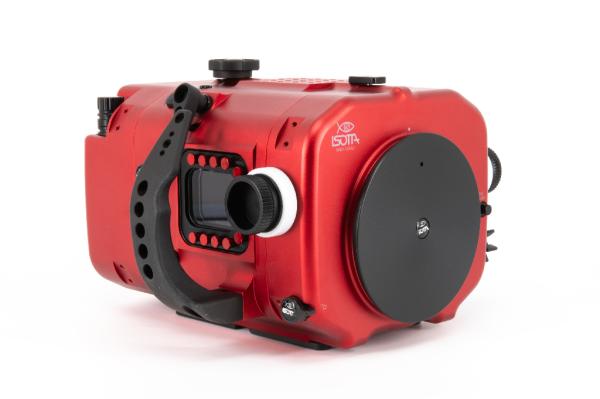

ISOTTA Housing for RED V-RAPTOR [X]

TECHNICAL SPECIFICATIONS

• Body made of red anodized Anticorodal aluminum;

• Adjustable ergonomic side handles (via optional accessories);

• Two M16 holes, one M24 hole, and one M28 hole for accessories such as vacuum systems or monitors;

• Backplate completely separable from the housing body;

• Slide with safety lock for easy camera insertion;

• Single-handed housing closure;

• Aluminum buttons corresponding to camera buttons with a window for viewing the menu display;

• Magnetic aluminum buttons and levers for electronic control of the V-Raptor [X];

• Double O-ring seal on every moving or removable part;

• Water/moisture alarm with user-replaceable battery;

• B120 bayonet port mount;

• Security lock on the port to prevent accidental opening;

• Large rubber-coated feet for stable positioning on any surface;

• M6 hole grid on top and back for attaching various accessories (focus light, balls, handle, etc.);

• Four M6 holes on the bottom for accessories (tray, tripod);

• Four pairs of M5 holes per side for attaching ball mounts with plates;

• Ready for the ISOTTA vacuum system (not included);

• Depth rating: 100 meters;

CONTROLS

• RED V-Raptor [X] ON/OFF switch;

• Ergonomic mechanical lever for the record button, easy to use even with gloves;

• Record button (REC);

• Lens release button;

• Filter knob;

• Zoom mechanism knob;

• Focus mechanism knob;

• Port safety lever;

• Menu navigation buttons;

• Auto-Focus lever;

• ISO+ / ISO- lever;

• Aperture+ / Aperture- lever;

• FPS+ / FPS- buttons;

• White Balance + / - buttons;

• Shutter + / - buttons;

• Playback button;

• Auto White Balance button;


  WHAT'S INCLUDED

• Housing;

• Front cap;

• Handles;

• Moisture sensor;

• Spare O-ring kit;

• Silicone lubricant (15g / 0.5 oz);

• Warranty: 2-year manufacturer warranty (excluding batteries);
