ISOTTA Sony A7S III Underwater Housing

TECHNICAL DATA

• Red color anodized aluminum body;
• Ergonomic side handles, adjustable (via optional accessory);
• Two fiber optic connections standard (to use the flash needs an optional trigger);

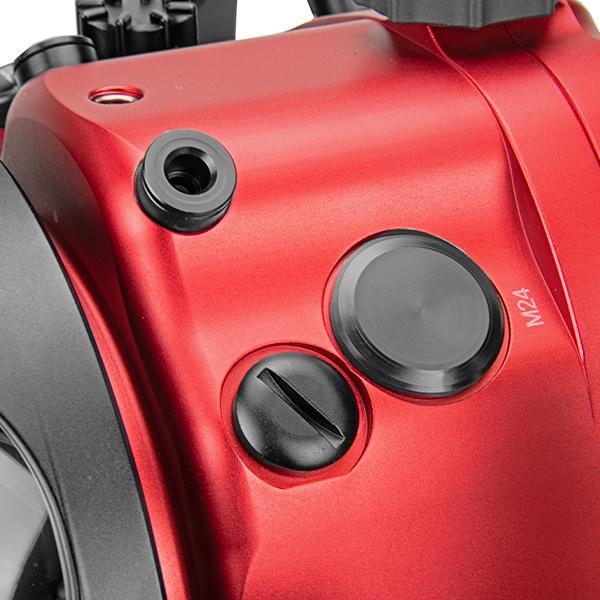

• Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
• Back housing completely detachable from the front housing;
• Tray with lock for the easy insertion of the camera;
• Single-hand closing knob for the back of the housing;
• Aluminum buttons and dials with engraved symbols identical to camera controls;
• Wide back display viewfinder glass;
• Standard ISOTTA viewfinder;
• Double O-Ring seals on all buttons and removable parts;
• Moisture sensor with LED indicator (replaceable battery);
• Removable port B120 bayonet;
• Safety lock on the porthole to prevent accidental opening;
• Wide, rubber covered feet for solid footing on boat floors or sea floor;
• M8 hole located on upper side of the housing for various accessories such as focus lights;
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
• External viewfinders can be mounted, INON X-2 compatible;
• Working depth: 100 meters;
• Sizes (LxHxP): 282mm x 186mm x 127mm;

COMMANDS

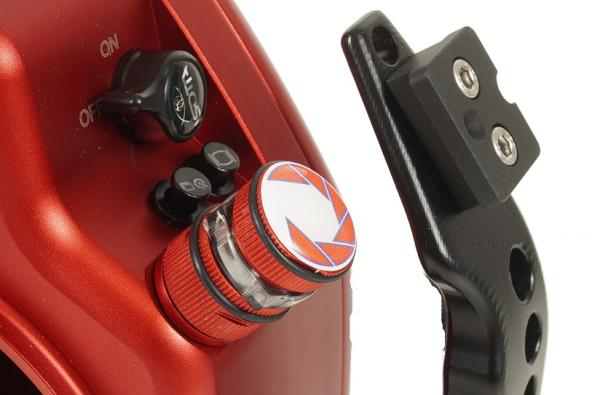

• ON/OFF lever of the Sony Alpha 7S III;
• Ergonomic camera focusing and shutter lever, easy to use with gloves;
• Lens release lever;
• Aperture knob;
• C1 button;
• C2 button;
• C3 button;
• C4/Delete button;
• Mode dial;
• Zoom dial;
• Port safety lever;

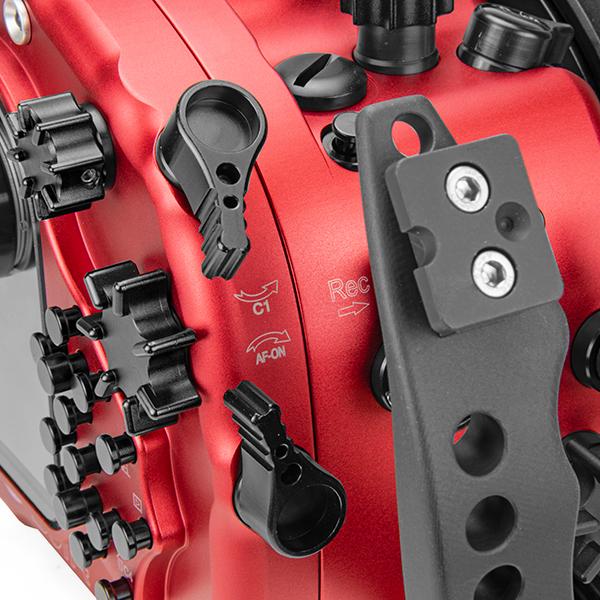

• Movie (REC) lever;
• AF-ON lever;
• Rear dial;
• Exposure compensation dial;
• Lock button of the exposure compensation dial;
• Menu button;
• AEL button;
• Multi-selector buttons;
• Playback button;
• Buttons of the control wheel;
• Fn button;

OPTIONAL

• Manual trigger;
• Nikonos 5 bulkhead;
• S6 bulkhead;
• Vacuum system ISOTTA;
• Handle extension;

WHAT IS INCLUDED

• Housing;
• Front lid;
• Handles;
• Standard ISOTTA viewfinder;
• Humidity sensor;
• Fiber optic connection bulkhead (to use the flash needs an optional trigger);
• Replacement O-ring kit;
• Silicone lubricant 15gr / 0,5 oz;
• Warranty: 2 years manufacturer's (excluding batteries)
