ISOTTA Vacuum System

TECHNICAL DATA

• Electronic pressure monitoring thanks to high precision sensors; the electronics accurately measure the pressure inside the housing, detecting even the smallest variations;
• LED signaling integrated on board the device; the LEDs provide an immediate visual signaling system. A green LED indicates a secure seal, while a red LED indicates the presence of a leak;
• Possibility to remote the LED via cable and position the visual signal in a more visible point inside the case or as needed; ideal for complex underwater setups;

ELECTRONIC

• Fixing with 4 screws;
• Battery CR3450 included;
• Sized LxWxH: 47mm x 27mm x 14mm

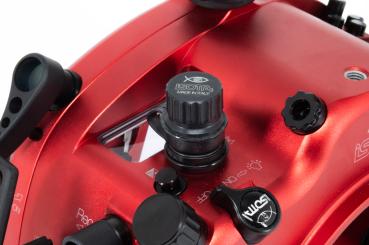

VALVE

• Anodized anticorodal aluminium;
• M16x1;
• Double O-ring seal;
• Dedicated wrench for attaching to the housing;
• Ergonomic closing cap;
• Secure to avoid losing the cap;

Pump

• Hand pump;
• Pump material: hard plastic;
• Soft adapter for vacuum system valve;
• Adapter Material: Rubber;

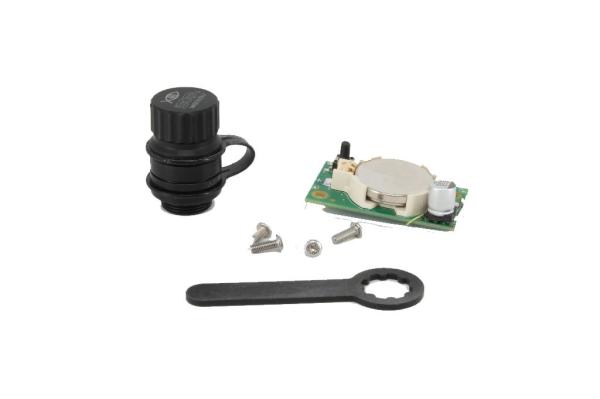

WHAT IS INCLUDED

• Electronic;
• Battery CR2450;
• Vacuum hand pump;
• Rubber adapter;
• Vacuum valve;
• Valve losing cap;
• Secure to avoid losing the valve cap;
• Dedicated key for fixing the valve to the housing;
• Warranty;
